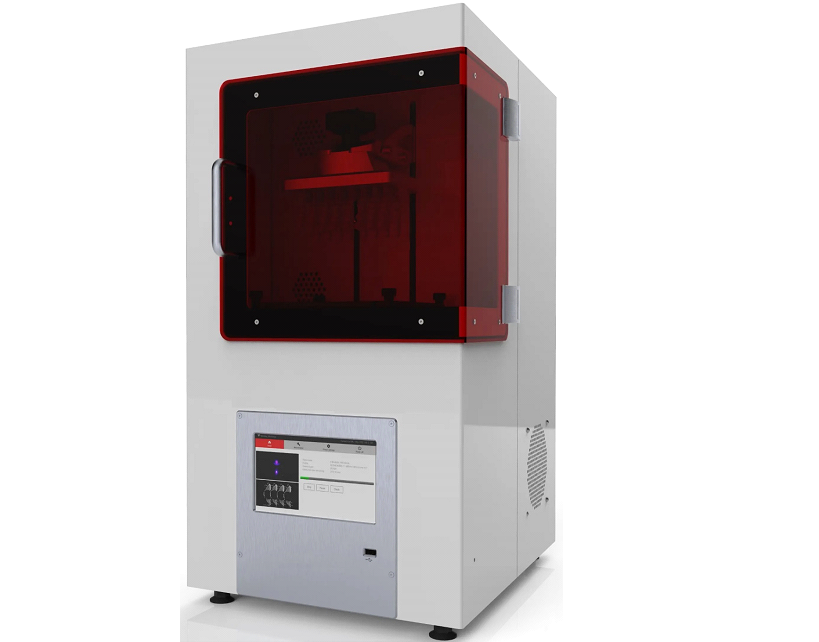

OROFORM HD UV DLP 3D PRINTER
SPECIFICATIONS
UV 385nm UV LED HD DLP Engine
Printing Build Size 125 (X) x 70 (Y) x 180 (Z) mm
XY Resolution 65 Microns
Z Reposition Resolution 1 Microns
Z Print Layer 10 ~ 100 Microns Variable
Power 12V DC 1.7Amps 150W
FEATURES
Full HD UV DLP Light Engine 385nm Optical distortion near to 0%.
50000 Hr UV LED Light working Life
Internal Radiometer auto calibrate each layer to keep same amount of UV Energy.
Fast, Reliable, High resolution, Accurate Prints
100% Open to Third party Print materials, accepts all manufacturers resin materials
Anodized Aluminum durable components
Low Maintenance / Running cost No need replacement tank, Only release film which is negligible cost
Temperature controlled Chamber to maintain Resin Viscosity.
Dust Filters to protect internal environment
Leveling and Print Wizard
7” User Friendly touch screen
Monitoring Camera under the tank
Accepts STL, SLC, ZIP(PNG) files
User Friendly OroForm control Software
Life Free Software updates No License Fees
Wifi, Ethernet & Flash Drive connectivity
Plug & Play Operation.
Suitable to Jewellery, Dental, Hearing Aid, Industrial Applications.
